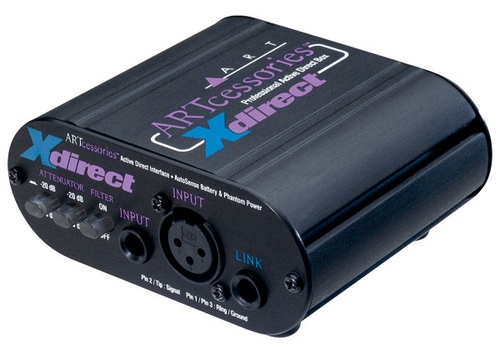

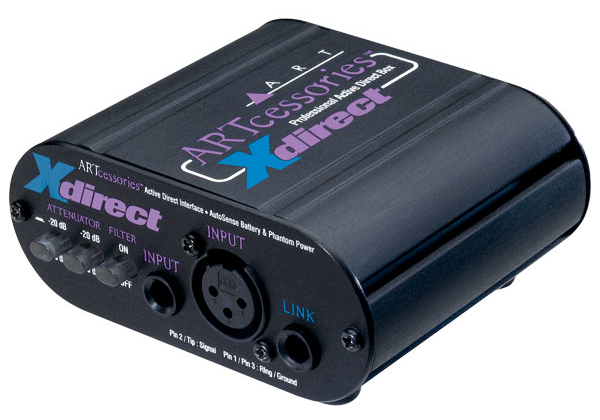

ART XDirect
33130
Description
Caractéristiques
- Frequency Response: 10Hz –100kHz, +/-.5dB @ +0dBu
- Maximum Output Level: +6dBu (battery powered) +14dBu (phantom powered)
- Maximum Input Level: +4/+24/+44dBu
- Dynamic Range: >100dB typical
- Input Connections: 1/4” TRS and XLR female unbalanced, 470k Ohm
- Output Connection: XLR male balanced, <600 Ohm
- THD: <.05% Typical
- Filter Type/Response: Switchable, Low Pass, -3dB @ 30kHz
- Input Attenuation: Switchable, (0dB, -20dB, -40dB)
- Output Phase: Switchable, Normal/Invert
- Ground Lift: Switchable, fully isolates inputs from chassis and output.
- Power Requirements: 9V @3.5ma (internal battery) or 18VDC–48VDC @9.5ma (phantom power)
- Dimensions: 1.75”H x 4.2”W x 3.5”D (44.5mm x 107mm x 89mm)
- Weight: .75 lbs. (.34kg)
