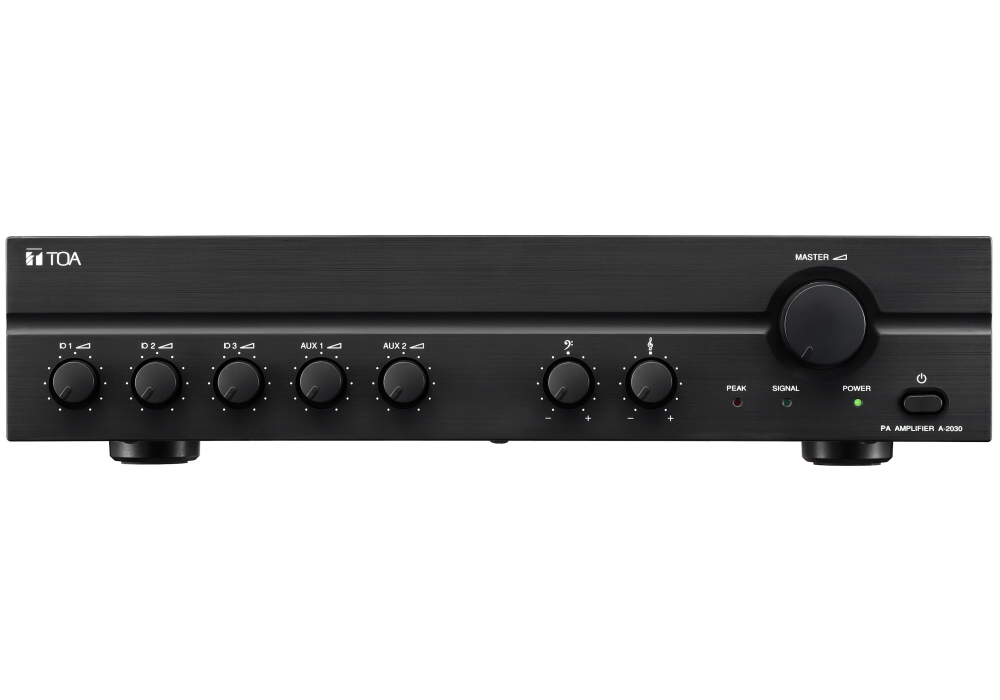

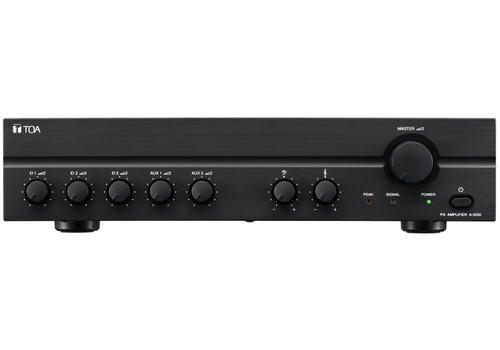

Amplificateur mélangeur 120W

Amplificateur mélangeur 120W d'un excellent rapport qualité prix. Convient pour les systèmes audio dans les écoles, les bureaux, les boutiques, les restaurants, les usines, les lieux de culte et les grandes salles de réunion.

Specification

• Power Source 220 - 240V AC or 24V DC
• Rated Output 120W
• Power Consumption 124W (EN60065), 260W(AC operation at rated output, 8A (DC operation at rated output)
• Frequency Response 50 - 20,000Hz (+/- 3 dB)
• Distortion Under 1% at 1kHz,1/3 rated power

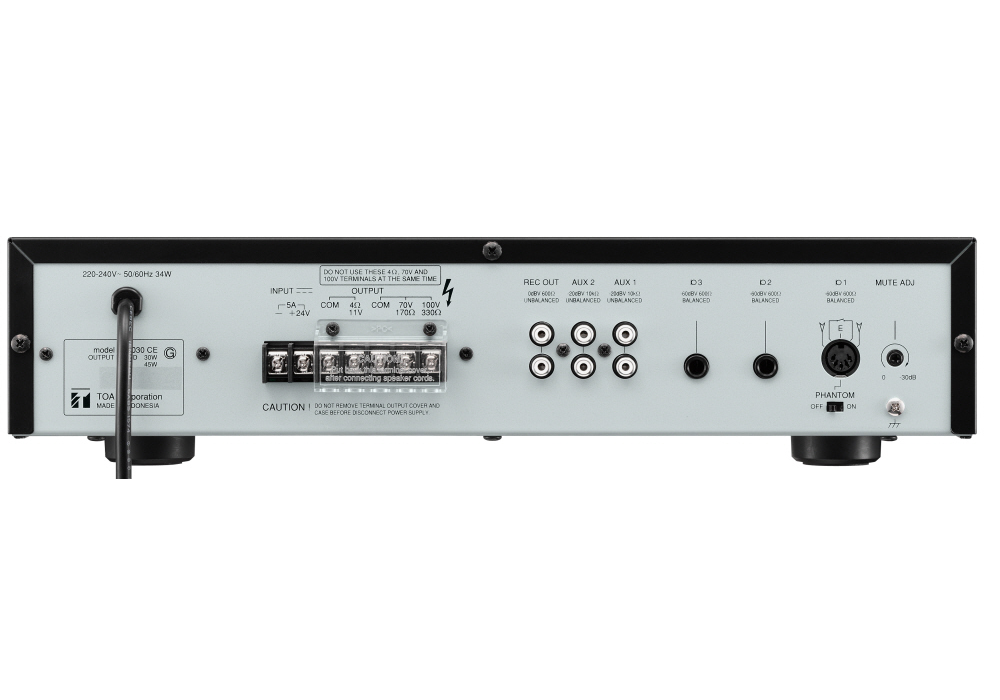

• Input MIC 1: -60db 600Ω,electronically balanced, 5-P Din type. MIC 2,3:-60db 600Ω,electronically balanced, 5-P phone jack. AUX 1,2: -20dB, 10kΩ, unblanced, RCA pin jack. Mute: Contact Pin 4 - 5 Closure input (for MIC 1)
• Output SPEAKER OUT:Balanced (floating)
• HIGH IMPEDANCE:83W (100V)
• LOW IMPEDANCE: 4Ω (22V)
• REC. OUT: Odb, 600Ω unbalanced, RCA pin jack
• Phnatom Powe DC + 21V (MIC 1)
• S/N Ratio Over 60dB
• Tone Control Bass: +/- 10 dB at 100k Hz Treble: +/- 10 dB at 10k Hz
• Muting MIC1: Mutes other signals by 0 - 30 dB attenuation
• Indicator Power signal, peak
• Finish Panel: ABS resin, black/Case: Steel plate, black
• Dimensions 420 (W) x 100.9 (H) x 360.3 (D) mm
• Weight 10kg
